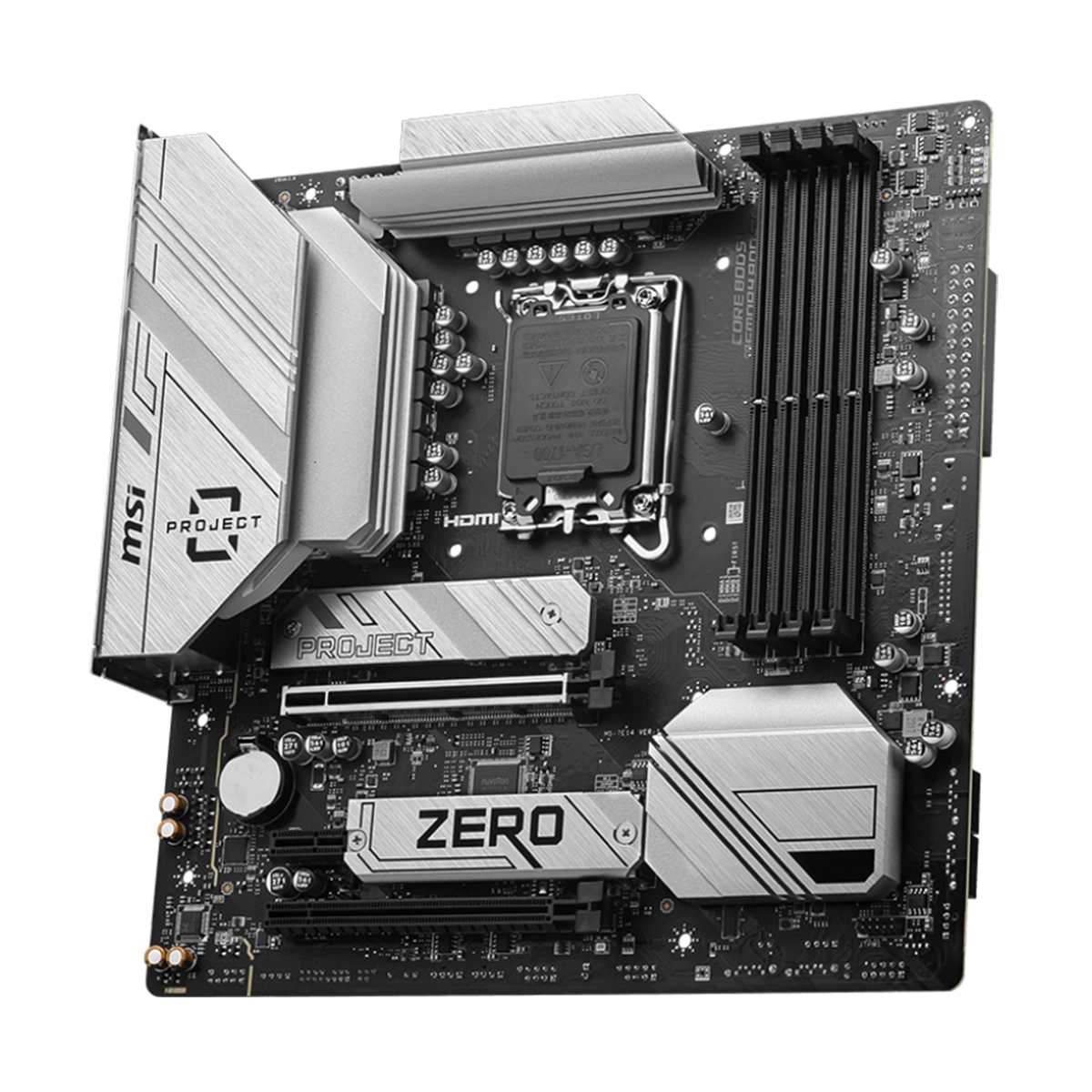

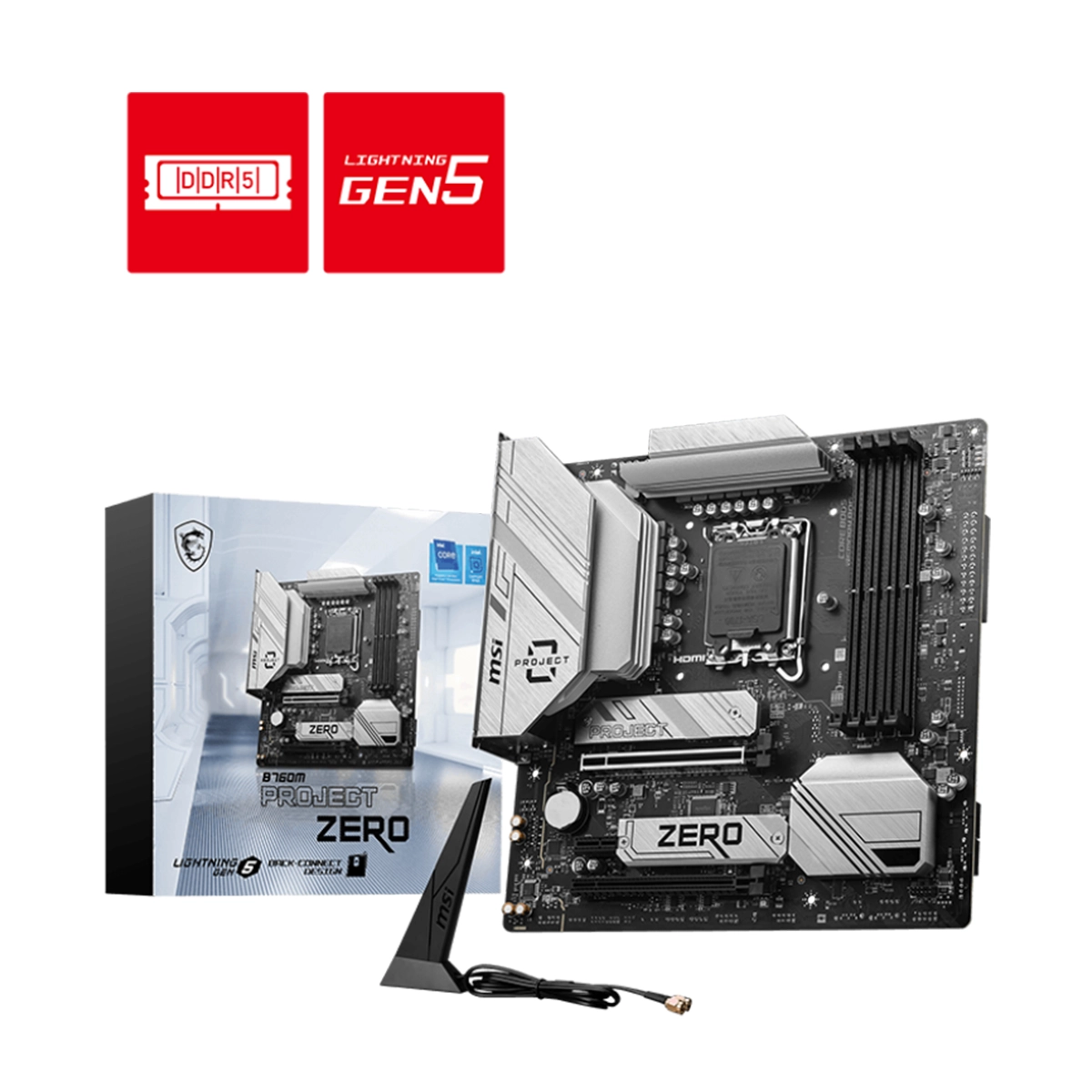

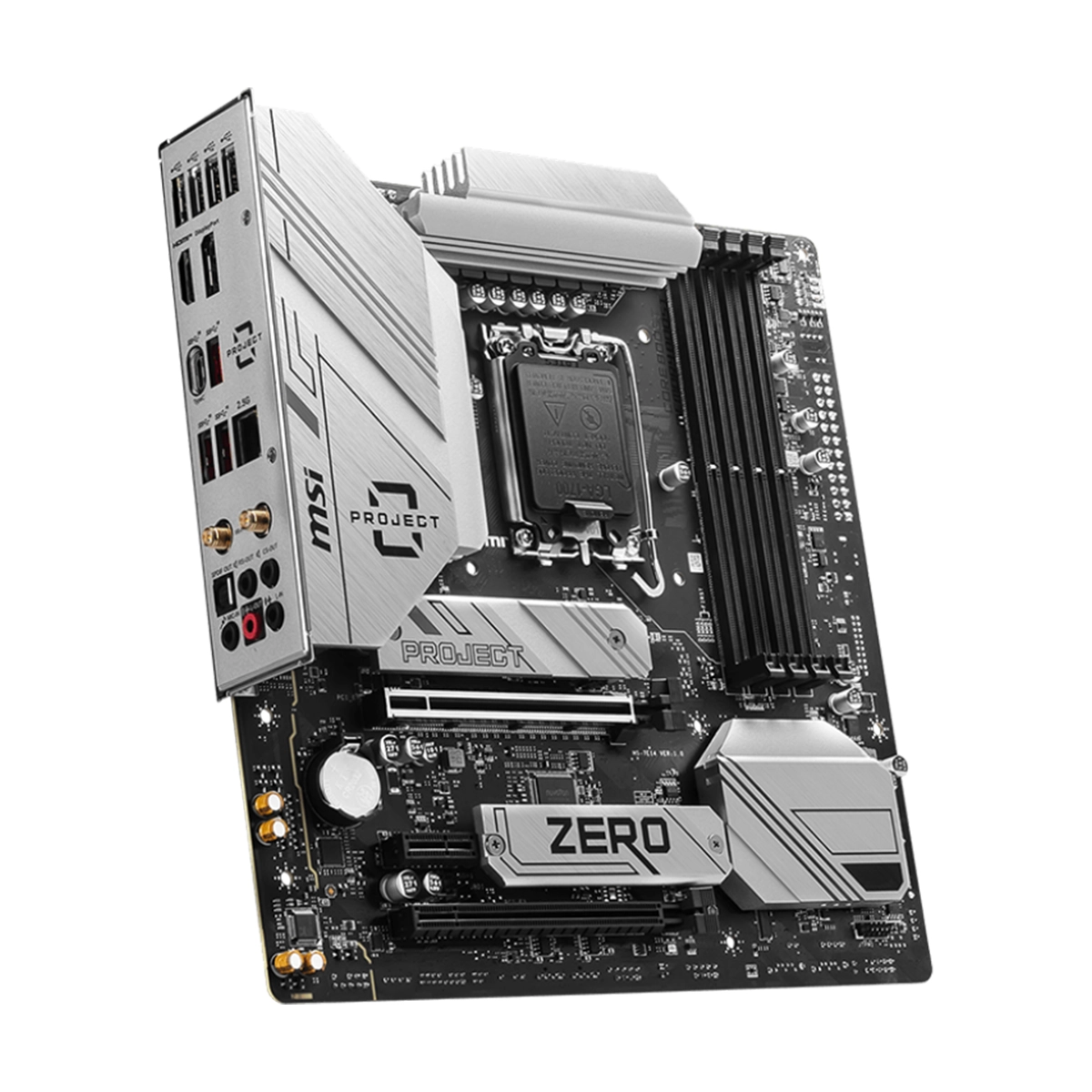

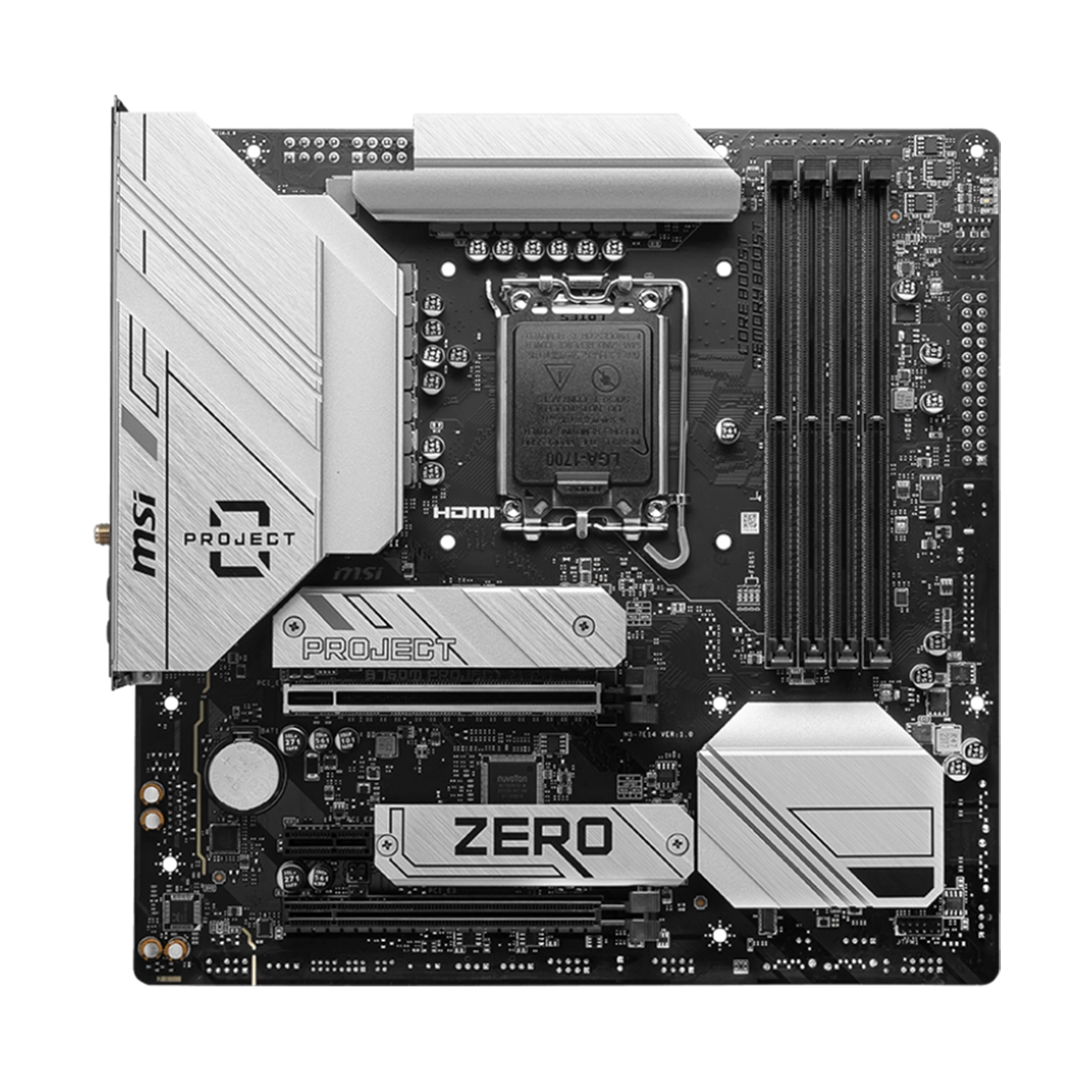

Motherboard Lga1700 Msi B760m Project Zero Wifi Ddr5
Codigo: 25330










Descripción
Características principales
Socket: Socket 1700
Procesadores soportados: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Factor de forma: mATX
características generales
Marca
Msi
Línea
Project Zero Wifi
Modelo
B760M
Color
Negro
chipset
Chipsets
Intel B760
especificaciones
Plataforma
Intel
Ranuras de expansión
2x PCI-E x16 slot 1x PCI-E x1 slot
Aplicaciones
PC
Con procesador
No
CPU
Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Procesadores soportados
Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

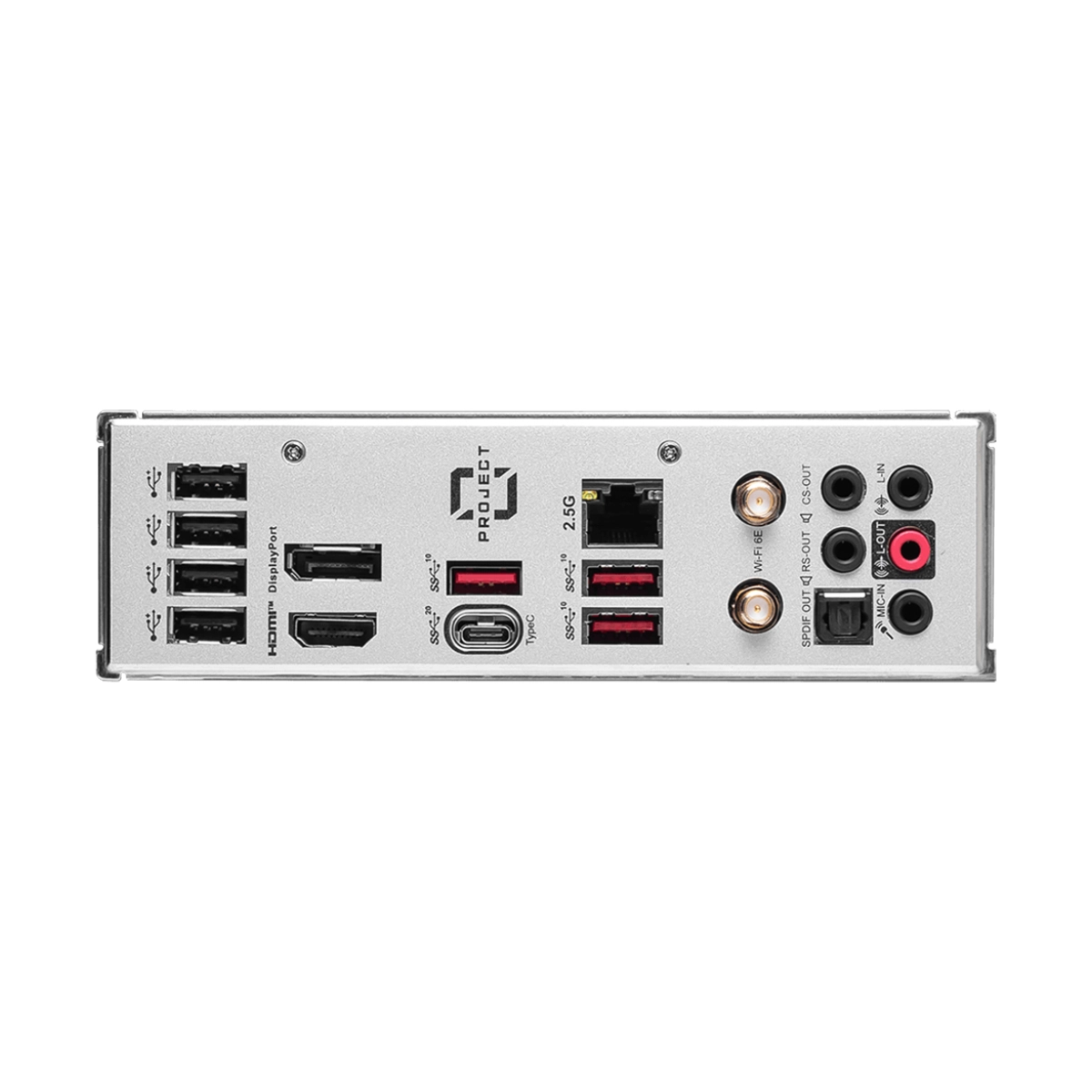

Panel trasero
4 x USB 2.0, DisplayPort 1.4, 3 x USB 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, HDMI 2.1 Port, USB 20Gbps Type-C, Optical S/PDIF OUT
Panel delantero
4x USB 2.0 (Front), 2x USB 5Gbps Type A (Front), 1x USB 10Gbps Type C (Front)
Puerto LAN
Realtek 2.5Gbps LAN
Conectores internos E/S
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Accesorios incluidos
Cable SATA, EZ M.2 Clip Package, M.2 Screww / Standoff Set, WiFi Antena, Cable Sticker.
Resolución máxima de video
4K 60Hz
Medidas
243.8 mm x 243.8 mm
Es gamer
Sí
factor de forma
Factor de forma
mATX
interfaz de almacenamiento
Puertos SATA
4
memoria
Tipo de memoria RAM
DDR5
Capacidad máxima soportada de la memoria RAM
256 GB
Módulos de memoria RAM
4
Formato de memoria RAM
DIMM
Velocidad de memoria RAM
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
socket
Socket
Socket 1700
